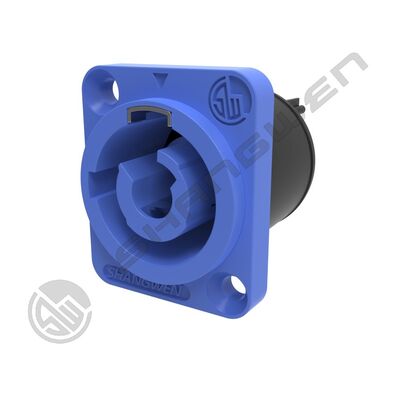

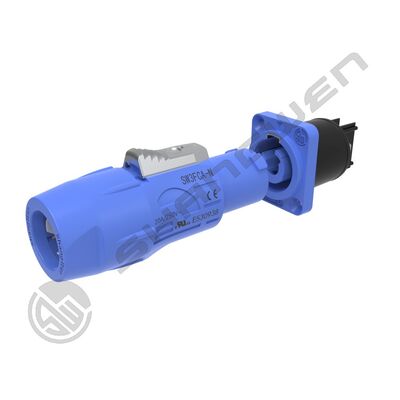

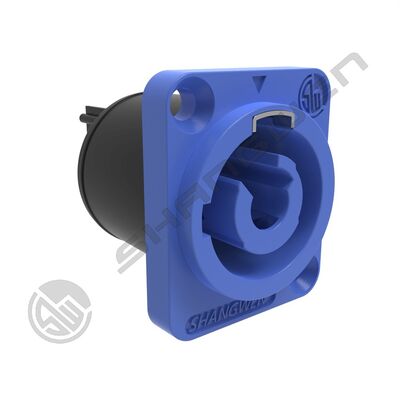

China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors

  • China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors
  • China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors
  • China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors
  • China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors
  • China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors
Place of Origin Guangdong, China
Marka adı SHANGWEN
Model Number SW3MPA
Minimum Order Quantity 2 pieces
Fiyat CN¥6.46-14.35/pieces

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Type led display connector Application Power
Gender Female Industrial electronics accessories
Vurgulamak

AC Powercon Power Connector Socket

,

Durable Flame-retardant Power Connector Socket

,

Indoor Power Connector Socket
Mesaj bırakın
Ürün Açıklaması
Products Description
Power connector series-female powercon（input port）
This series is widely used in indoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 0

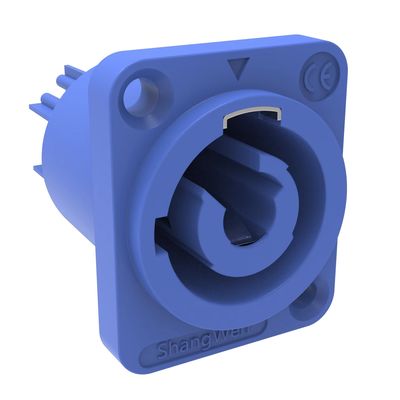

Model：SW3MPA（indoor use/blue input）
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Connect reliably
☑Use different color design to distinguish signal input and output, blue input, white output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 1
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 2
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 3
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 4
5.Installation reference drawing
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 5
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 6
Application area
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 7
Company Information
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 8
Patent & Certification
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 9
Exhibition activities
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 10
Packaging reference
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 11
Payment and logistics
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 12
FAQ
China Manufacture IP44 Indoor 3-Pin Triple Core Power Connector Socket Durable Flame-retardant 4-Pack AC Powercon Connectors 13
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
