IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability

  • IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability
  • IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability
  • IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability
  • IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability
Place of Origin Guangdong, China
Marka adı SHANGWEN
Model Number SWF7X-3TSN-KN
Minimum Order Quantity 10pieces
Fiyat CN¥6.85-18.55/pieces

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
IP level IP40 Type XLR connector
Application Audio & Video Gender MALE/FEMALE
Industrial electronics accessories
Vurgulamak

3.5mm XLR Female Socket Connector

,

High Durability XLR Female Socket Connector
Mesaj bırakın
Ürün Açıklaması
Products Description

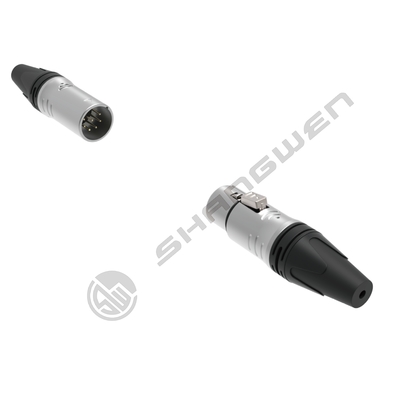

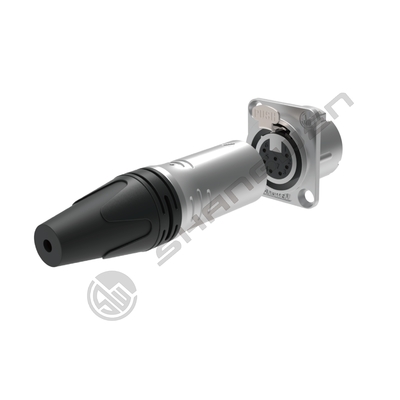

XLR connector-7 pin plug and socket


IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 0
Model:

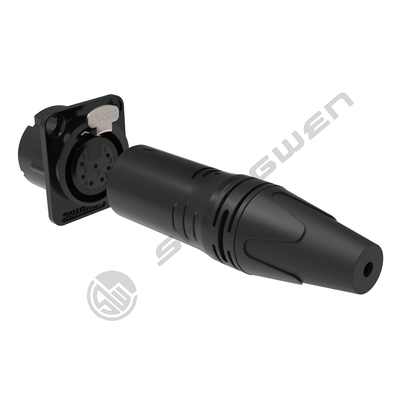

SWF7X-3TBN-KN (Black)

SWF7X-3TSN-KN (Sliver)

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated,the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm

IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 1
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 2
1.Product parameters
Connection Type
XLR
Gender
female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
＞1000 mating cycles
Wire size
Max. 1.0 mm²
Wire size
Max. 18 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 3
6.Assembly reference
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 4
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 5

Application area
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 6
Company Information
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 7
Patent & Certification
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 8
Exhibition activities
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 9
Packaging reference
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 10
Payment and logistics
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 11
FAQ
IP40 Indoor Audio Cable Plug 7-Pin XLR Female Socket Connector with 3.5mm Gold Conductor Shell Plating and High Durability 12
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
