Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector

  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
  • Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector
Menşe yeri Guangdong, Çin
Marka adı SHANGWEN
Model numarası SW8FDNE-30-N
Min sipariş miktarı 10 parça
Fiyat $0.90-2 / piece

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Değerlendirilmiş Akım 1.5a IP seviyesi IP44
Tip RJ45 soketi Başvuru Ethernet
Cinsiyet Dişi Endüstriyel elektronik Aksesuarlar
Nominal Voltaj 50 V Hizmet ömrü > 1000 kez
Vurgulamak

Black Female Socket Ethercon Connector

,

Chassis Network Plug Ethercon Connector

,

RJ45 Audio Ethercon Connector
Mesaj bırakın
Ürün Açıklaması
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 0
Model：SW8FDNE-30（indoor use）
*The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button*
☑Accommodates SW8MC-A or any standard RJ45 plug
☑D style with uniform metal flanges
☑Approved latch lock system
☑Mountable from the front or rear of the panel
☑The back-end can be flexibly modified according to actual requirements
☑Complies with Cat5e according to TIA / EIA 568B and ISO / IEC 11801 standard
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 2
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 4
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 6
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
Cat 5E
2. Mechanical parameters
Service life
＞1000 times
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D style
3. Material and environmental parameters
Shell
Zinc diecast
Contacts
Bronze
Insert
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
Level of protection
IP44
4.Size reference (unit /mm)
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 8
5.Internal structure reference
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 10

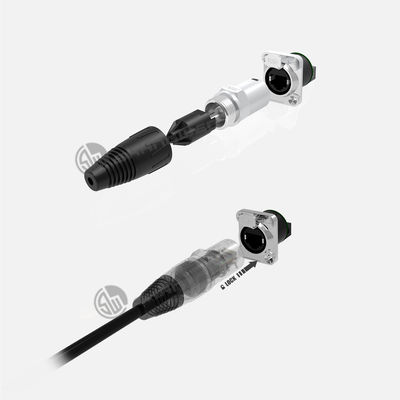

6. Installation instructions with SW8MC-A plugs
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 12
Application area
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 14
Company Information
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 16
Patent & Certification
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 18
Exhibition activities
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 20
Packaging reference
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 22
Payment and logistics
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 24
FAQ
Audio Ethercon Connector Cat5e Cat RJ45 Receptacles Black Female Socket Chassis Network Plug Cat5e Rj45 Connector 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
