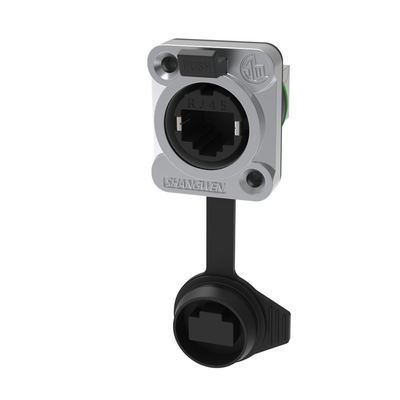

Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector

  • Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
  • Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
  • Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
  • Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
  • Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
Menşe yeri Guangdong, Çin
Marka adı SHANGWEN
Model numarası SW8FDYE
Min sipariş miktarı 10 parça
Fiyat $2.20-3.30 / piece

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Başvuru Ethernet Cinsiyet Dişi
Tip RJ45 soketi Endüstriyel elektronik Aksesuarlar
Vurgulamak

IP65 Rj45 Connector

,

Straight Plug Rj45 Connector

,

8 Pin Female Rj45 Connector
Mesaj bırakın
Ürün Açıklaması
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 0
Model：SW8FDYE（outdoor use）

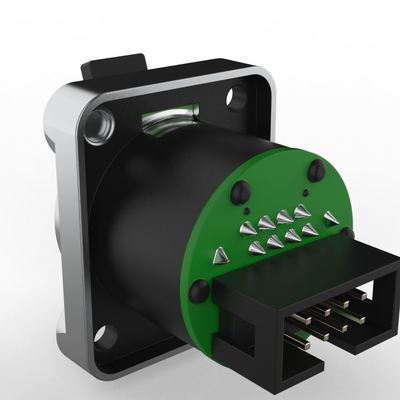

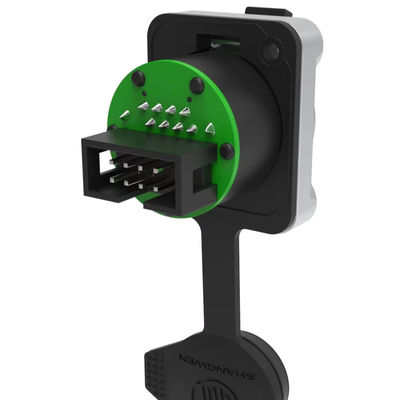

*The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button, IP65*

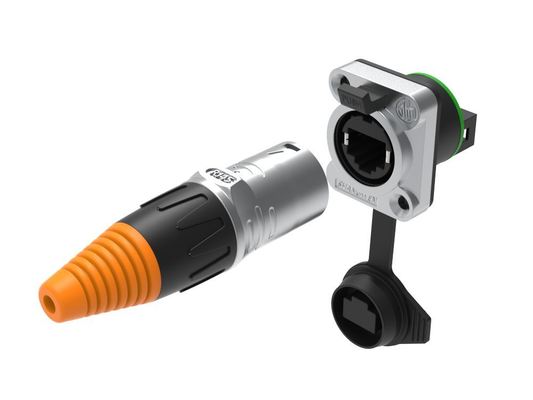

☑Can be compatible with SW8MC-B or any standard RJ45 connector
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel
☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 2
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 4
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000 times
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D
3. Material and environmental parameters
Shell
Zinc diecast (ZnAl4Cu1)
Contacts
Bronze
Socket
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
4.Size reference (unit /mm)
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 6
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 8
5.Internal structure reference
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 10
6. Installation instructions with SW8MC-B plugs
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 12
Application area
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 14
Company Information
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 16
Patent & Certification
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 18
Exhibition activities
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 20
Packaging reference
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 22
Payment and logistics
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 24
FAQ
Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
