Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin RJ45 Connectors

Menşe yeri Guangdong, Çin
Marka adı SHANGWEN
Model numarası SW-30-N
Min sipariş miktarı 10 parça
Fiyat $2.10 / piece

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Başvuru Ethernet Temas malzemesi Bakır
Değerlendirilmiş Akım 20 bir Nominal Voltaj 250 volt
Cinsiyet Erkek/kadın Konut malzemesi Pirinç
IP seviyesi IP67 Şekil Yuvarlak
Tip RJ45 soketi Endüstriyel elektronik Aksesuarlar
Vurgulamak

Outdoor IP65 Rated RJ45 Connectors

,

8-Pin RJ45 Connectors

,

8 Core RJ45 Connectors

Mesaj bırakın
Ürün Açıklaması
Products Description

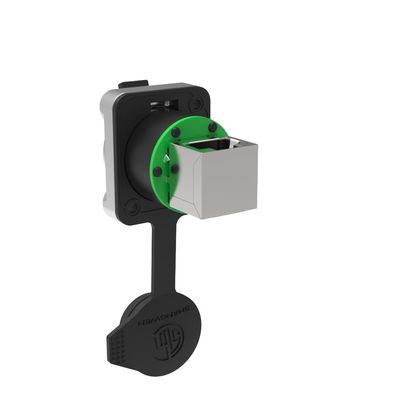

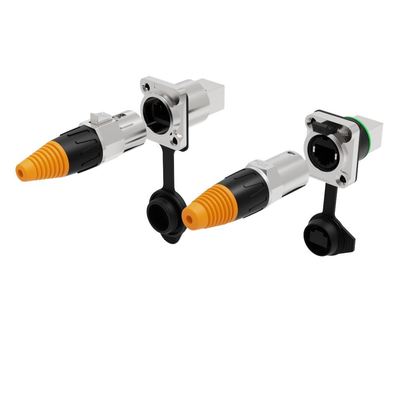

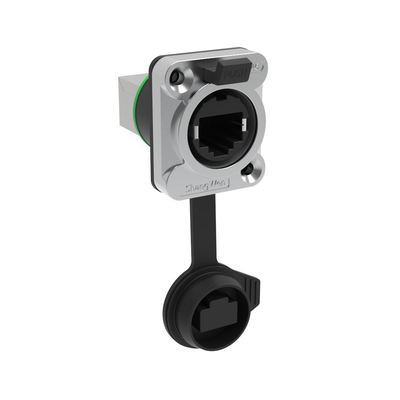

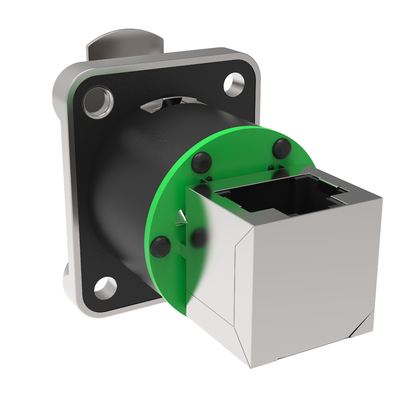

Outdoor Metal Material Card Buckle 8 Core Male signal connector for Led Display RJ45 Connectors
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 0
Model:SW8FDYV-30-N
This RJ45 system is suitable for very harsh environments
This cable connection kit works with most RJ-45 connectors
Rugged die-cast housing and unique wire rack lock
In commercial applications, protecting Ethernet connections, this design protects against the elements of RJ45 standard
components
The design of the inner O-ring enables the waterproof rating to reach IP65
1. Mechanical parameters
Service life
>1000 mating cycles
Insertion force
≤20 N
Wiring
5-7mm
Locking device
latch lock
2. Material and environmental parameters
Boot
Polyamide
Shell
Zinc diecast
Shell plating
Pearl Cr
Temperature range
-30℃to +80℃
Application area
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 2
Company Information
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 4
Patent & Certification
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 6
Exhibition activities
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 8
Packaging reference
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 10
Payment and logistics
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 12
FAQ
Outdoor IP65 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector 8-Pin  RJ45 Connectors 14
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
