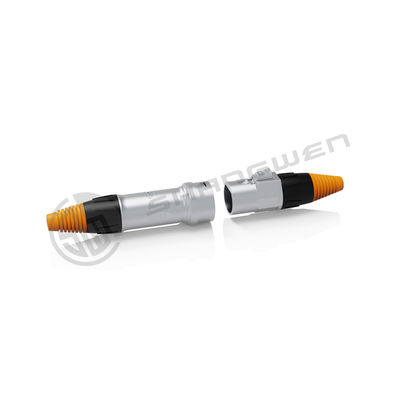

Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector

Menşe yeri Guangdong, Çin
Marka adı SHANGWEN
Model numarası SW8FC-03-N
Min sipariş miktarı 10 parça
Fiyat $2.50-3.90 / piece

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Başvuru Ethernet Cinsiyet erkek
IP seviyesi ip67,IP65 Tip RJ45
Endüstriyel elektronik Aksesuarlar
Vurgulamak

Male RJ45 Signal Connector

,

Ip65 RJ45 Signal Connector

,

Metal Button RJ45 Signal Connector

Mesaj bırakın
Ürün Açıklaması
Products Description
Signal connector series-RJ45 connector(Metal button upgrade model)
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 0
Model:SW8FC-03-N(Indoor use)
This RJ45 system is suitable for very harsh environments
The new lock design really realizes fast plug and pull, one hand operation, one action can unlock. Saves time compared with
traditional waterproof signal products.
The lock is designed on the plug, and the internal design is a strong spring. Press the button to unlock it, even if the spring fails, it can be unlocked, which is more stable than traditional products.
In many commercial applications, protected RJ45 connections are designed to prevent damage to fragile components in the RJ45
standard connectors
It can reach IP65/IP67 protection level in coordination state
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 2
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 4
1. Mechanical parameters
Service life
>1000 mating cycles
Insertion force
50 N
Wiring
5-7mm
Locking device
latch lock
2. Material and environmental parameters
Boot
Polyamide
Shell
Zinc diecast
Shell plating
Pearl Cr
Strain relief
Zinc diecast
Temperature range
-30℃to +80℃
3. Size reference (unit /mm)
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 6
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 8
4. Internal structure reference
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 10
5. Installation instructions with RJ45 socket
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 12
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 14
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 16
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 18
Application area
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 20
Company Information
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 22
Patent & Certification
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 24
Exhibition activities
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 26
Packaging reference
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 28
Payment and logistics
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 30
FAQ
Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector 32
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
