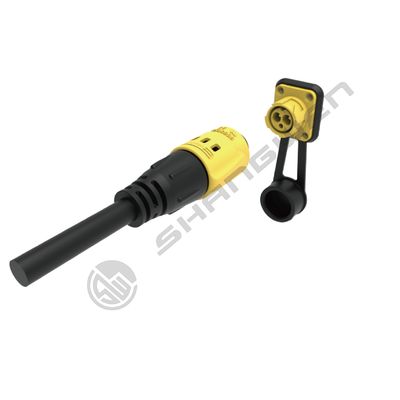

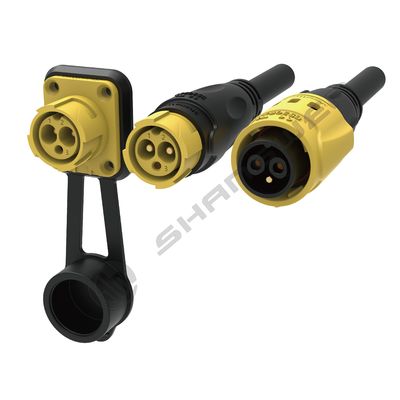

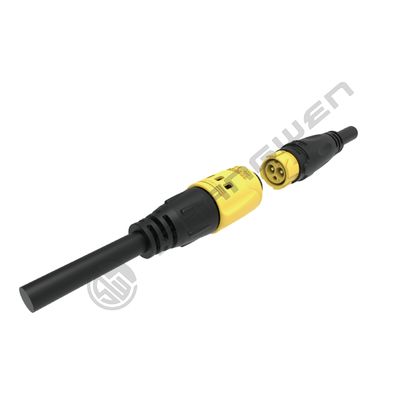

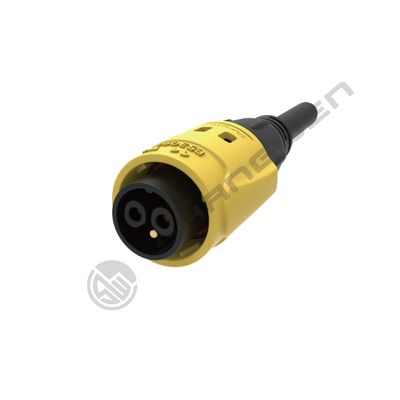

IP65 Quick Plug Output Push-pull Self-locking Yellow Industrial Female Male Plug Power M19 Push Lock Waterproof 3 Pin Connector
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Başvuru | Endüstriyel | Temas malzemesi | Bakır |
|---|---|---|---|
| Nominal akım | 20 bir | Nominal gerilim | 250 volt |
| Cinsiyet | erkek | Konut malzemesi | PA66 |
| Tip | SW19 Kendinden kilitlemeli seri | Endüstriyel elektronik | Aksesuarlar |
| Kabuk, yalıtım parçaları | Yüksek performanslı mühendislik plastikleri | Bakır iğnelerin malzemesi | Bakır alaşımı |
| Vurgulamak | Waterproof Quick Lock Connector,M19 Quick Plug Output Connector,Push-pull Self-locking Power Connector |
||
Ürün Açıklaması
Products Description
SW19 Self-locking series-3 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
Model : （output）
SWM19-3TBS-E3
SWM19-3TYS-E3
SWM19-3TLS-E3
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65
1.Electrical parameters
Contacts NO. | 3 pin |
Rated current | 20A |
Rated voltage | 250V AC |
Withstand voltage | 1500V |
Insulation resistance | ≥100mΩ |
Contact resistance | ≤10mΩ |
2.Mechanical parameters
Service life | ＞1000 times |
Power line | Φ4.5mm-Φ11mm |
Cable size | 0.3mm²-2.5mm²(22AWG-12AWG) |
Type of terminals | Screw terminal and soldering terminal available |
3.Material and environmental parameters
Shell | High performance engineering plastics |
Contacts | Copper alloy |
Contact diameter | Φ2.4mm |
Protection degree | IP65 |
Flame-retardant grade | UL94-V0 |
Temperature range | -40℃~105℃ |
4.Size reference (unit /mm)
Our power connector is a high-performance product designed to meet the needs of modern industrial and outdoor equipment, featuring
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
